here are some pics of the rods and mains i pulled out... other than being junk, i can tell that the engine was most likely rebuilt in a dirty environment. judging from the wear patterns im not sure if dirt was the only cause for premature bearing wear, or if there may be other factors i need to address

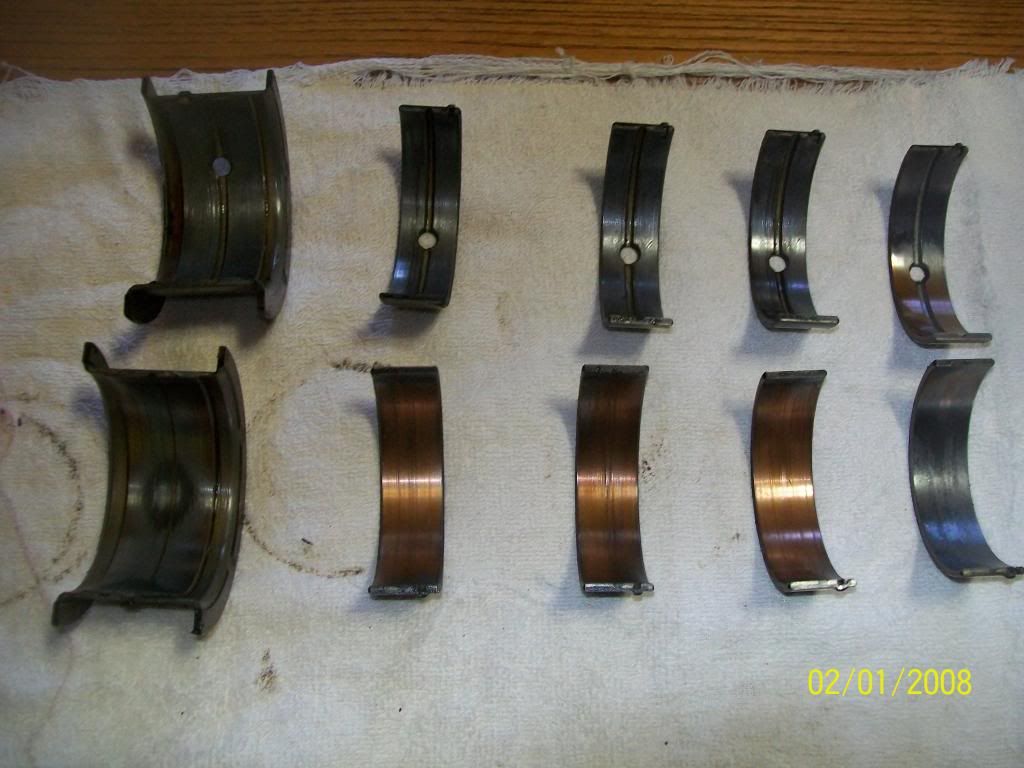

Here's the main's
![]()

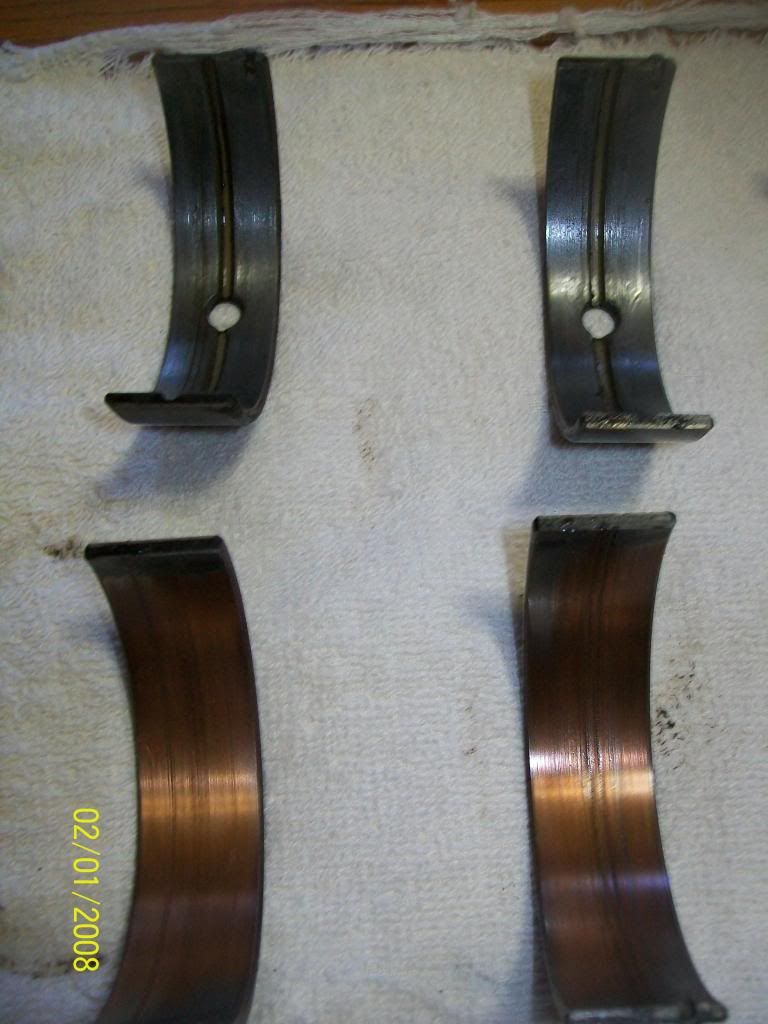

1st main top, 2nd on bottom
![]()
3rd main top, 4th main bottom
![]()

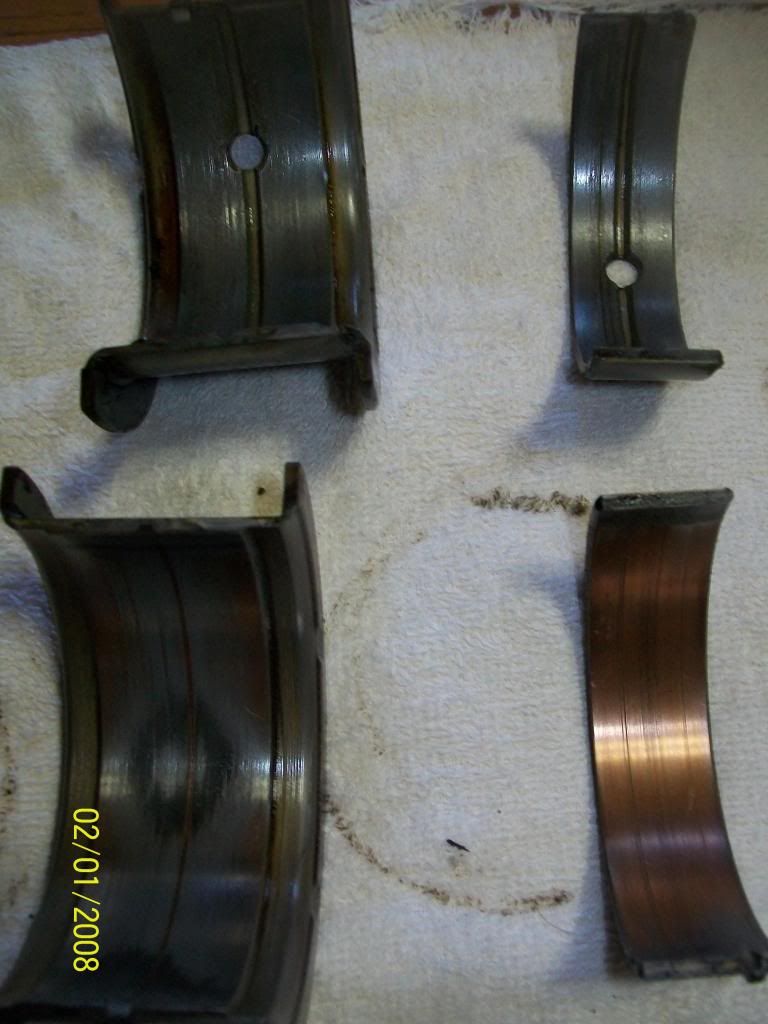

4th main top, thrust bottom (obviously haha)
![]()

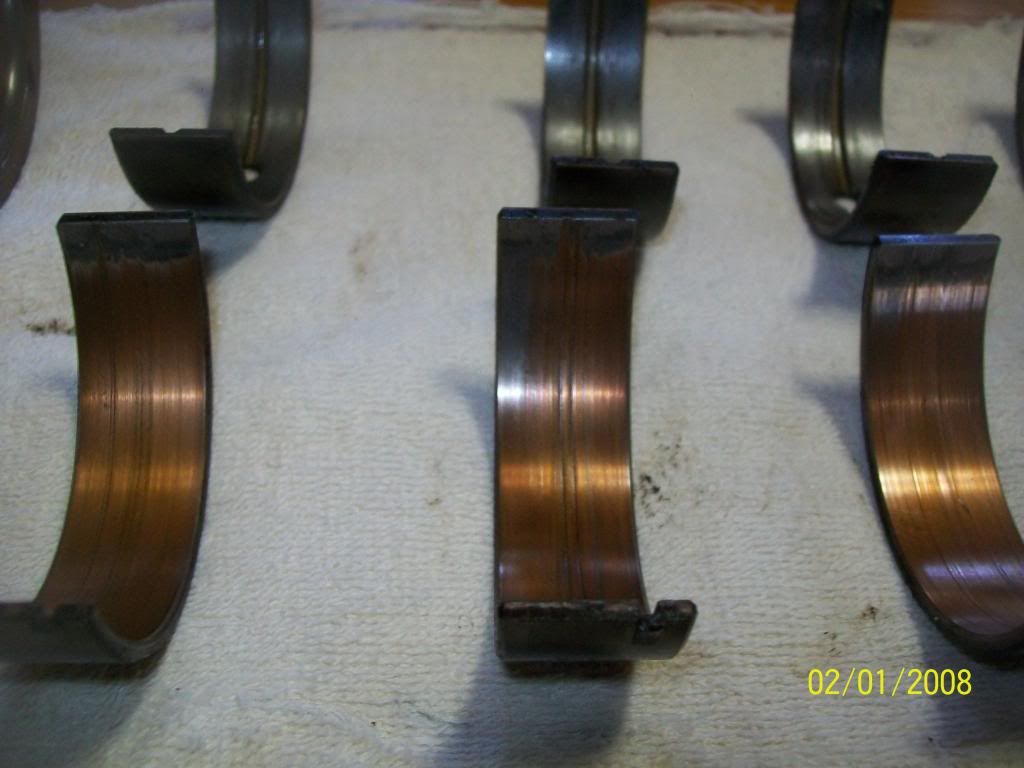

additional shot of the dirt grooving
![]()

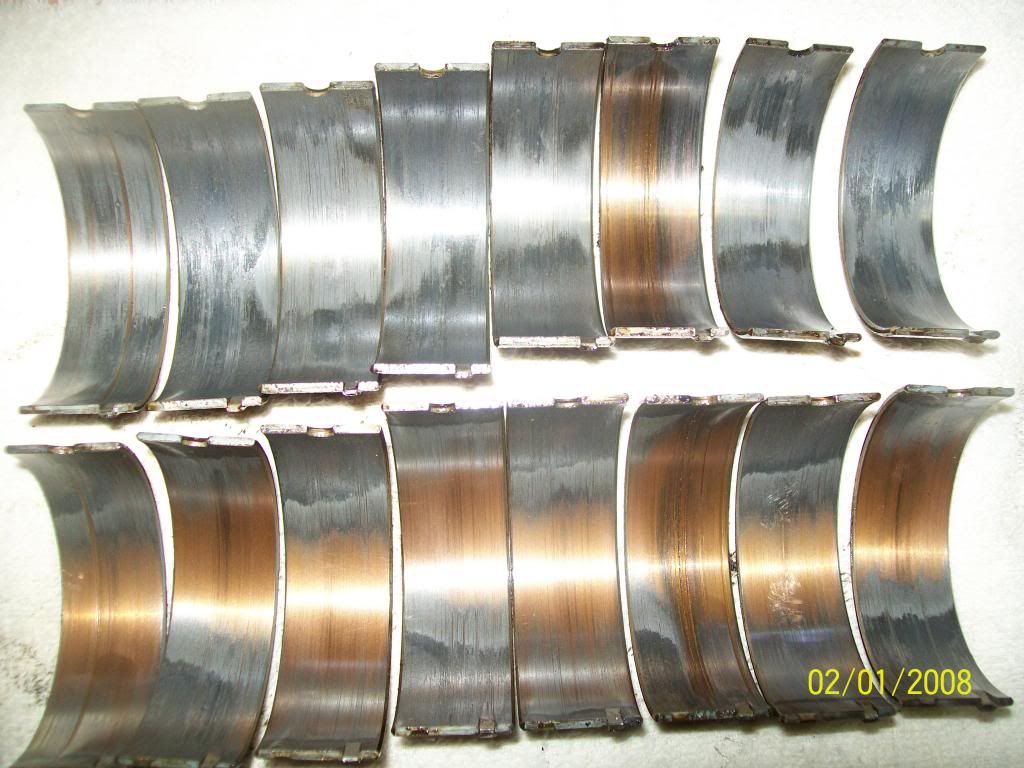

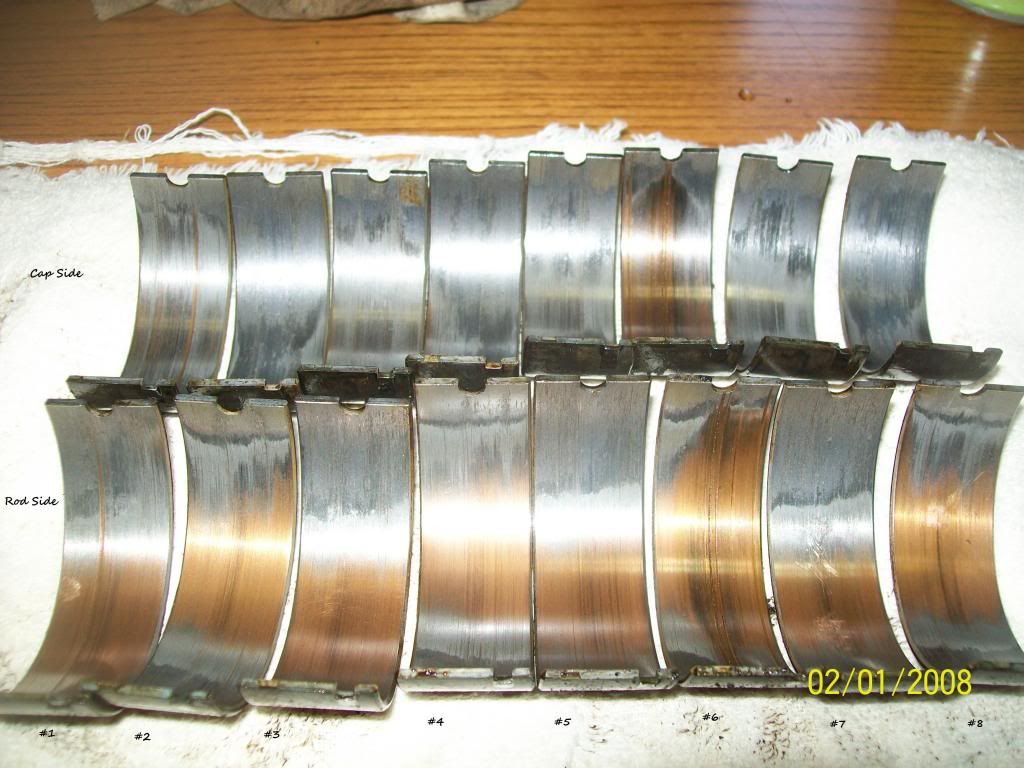

here is the rods
![]()
![]()
i can get additional pics if neccasary
Here's the main's

1st main top, 2nd on bottom

3rd main top, 4th main bottom

4th main top, thrust bottom (obviously haha)

additional shot of the dirt grooving

here is the rods


i can get additional pics if neccasary
